Optimized
LPDA for narrow band
This
project consists of an attempt to design a Narrow-Band Optimized
Log-Periodic Dipole Array which has the same or better
performance
characteristics (VSWR, Gain, Front-to-Back, Front-to-Rear, high G/T,
etc) as those of a similar boom-length monoband Yagi. I call
this
new type of antenna - NBO-LPDA.
Normally,
log-periodic dipole arrays are designed to cover a large frequency
range, such as 14 - 30 MHz or 50 - 200 MHz. LPDA's produce
moderate gain, moderate F/B and low VSWR over almost all frequencies
within the frequency range that they are designed for. They
are
similar in shape to Yagi beams, however, Yagis almost always have more
gain and more F/B within the band that they are designed for, compared
to a similar size LPDA which contains the band.
While evaluating some high-Tau LPDA designs in 2013,
I
found that I could obtain gain values within 1 dB of similar length
high performance VHF/UHF Yagis. These high-Tau designs also used a
Sigma value near optimum and produced extremely high gain and F/B and
F/R and extremely clean patterns in NEC simulations. Since the gain was
so close, I decided to inspect what parameters could be changed to
improve the gain on a specific frequency (e.g. 144.1 MHz) without
sacrificing too much F/B or F/R, or possibly improving the F/R along
with the gain. The display of current on each element suggested that
the longest 2 or 3 elements could be tweaked for slightly better F/R
without affecting the overall LPDA performance. Also the front elements
could also be tweaked to improve gain. The results of my
optimization were very encouraging. I now have several
optimized designs for both 144 and 432 MHz Amateur bands, and
I now
plan to build and test some of these to verify the real performance vs.
the NEC simulation. I will post more information here after this
verification process.
In addition, I have also been looking at the HF spectrum to see if I
can do something similar there also.
20 Meter NBO-LPDA's
I
first chose to look at creating an NBO-LPDA for the 20 meter Amateur
band. After a quick look at available large commercial 20
meter Yagis, I chose the M2
20M6 Yagi
as my "standard" to compare to.
My first attempt produced an 8-element NBO-LPDA on a 65 foot
boom which produced 11.2 dBi peak gain and over 25 dB F/R across the
14.0-14.35 MHz band. My second attempt produced a 7-element
NBO-LPDA on a 56 foot boom with 11.27 dBi peak gain, more than 11.0 dBi
from 14.0-14.35 MHz and 26 dB F/R (peak) and more than 22 dB F/R across
the band. I first optimized the design in NEC2 with
linear-taper elements, then converted these to a standard element-taper
based on Hy-Gain 20 meter diameters. The tapered-diameter
design was simulated in NEC 4.1. The plots are shown below. I
will supply NEC files upon request.

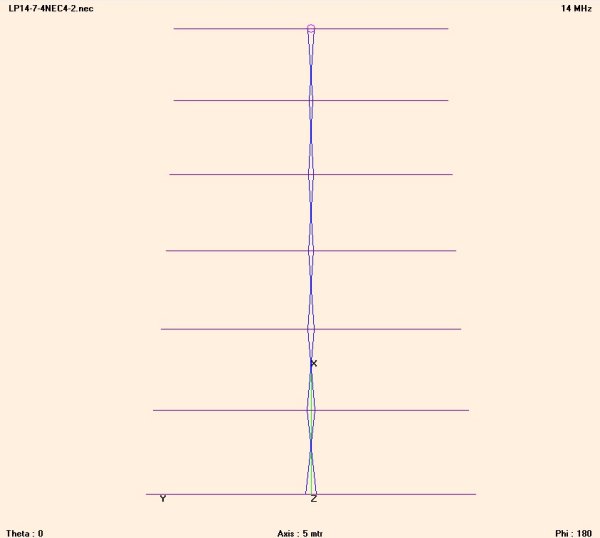

LP14-7 layout diagram

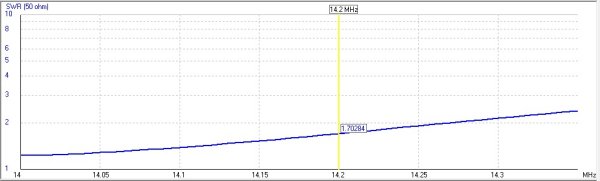

LP14-7 VSWR

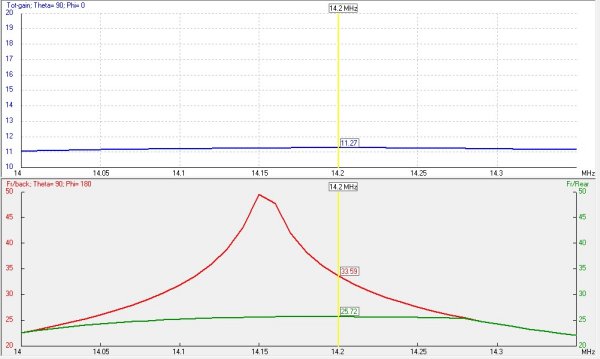

LP14-7 Gain (dBi) and F/B and F/R

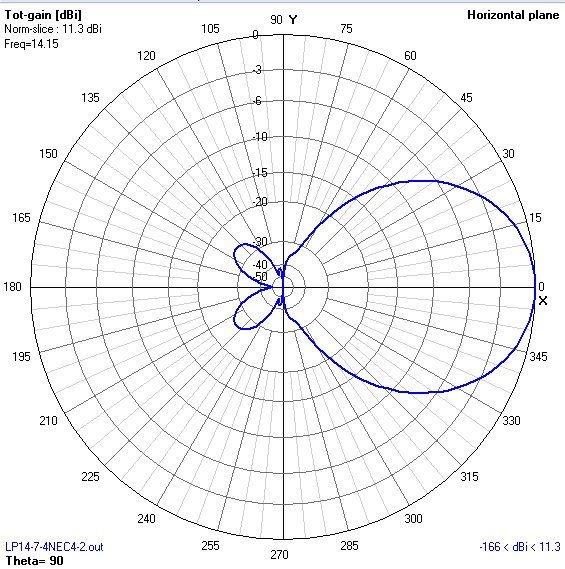

LP14-7 azimuth pattern at 14.150 MHz

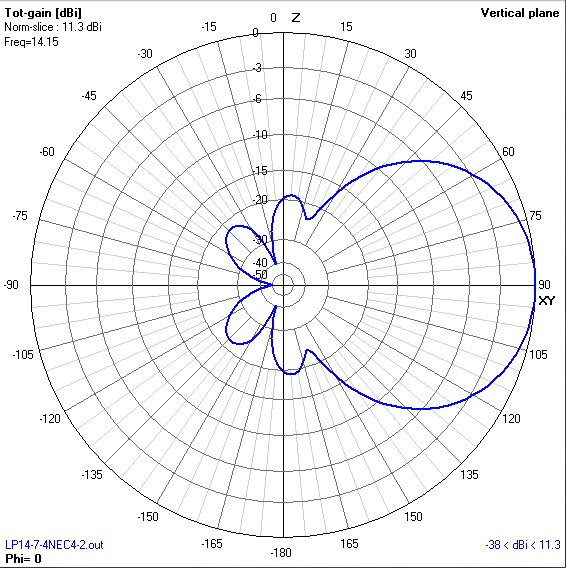

LP14-7 elevation pattern at 14.150 MHz
Comments
are welcome!
contact
Roger: email to
rgcox2
(at) gmail.com
Roger Cox W8IO - Spring
Lake, MI
